View Created Projects

View Projects

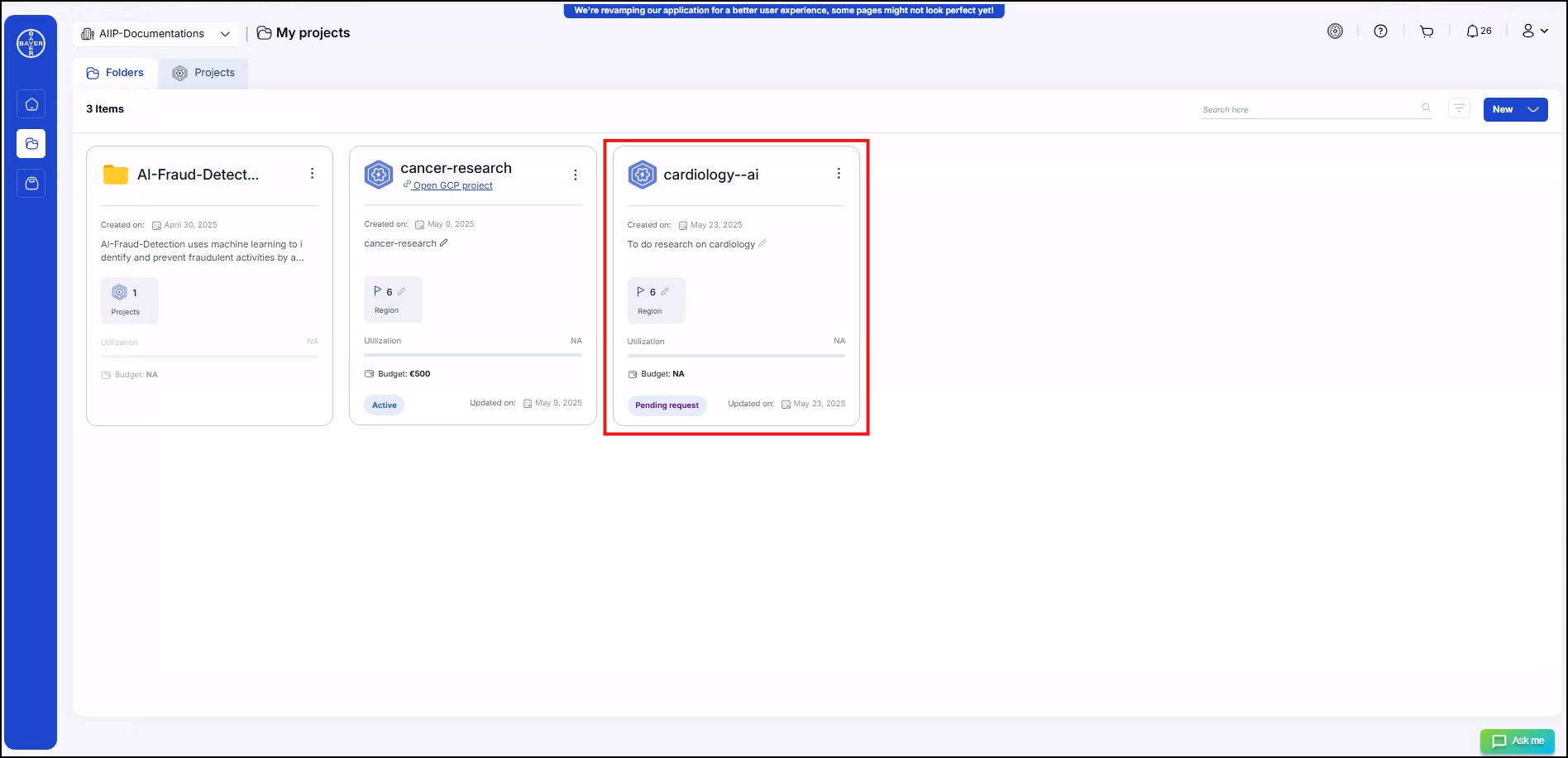

From the time the project is requested and sent for admin approval, the project will be displayed on the "My Projects" page with a tag as "Pending Request". Project card

The user can click on the project and can see the details of the project that has been requested.

Note: While the project is in the "Requested" state, all modifications are disabled and the project remains read-only.

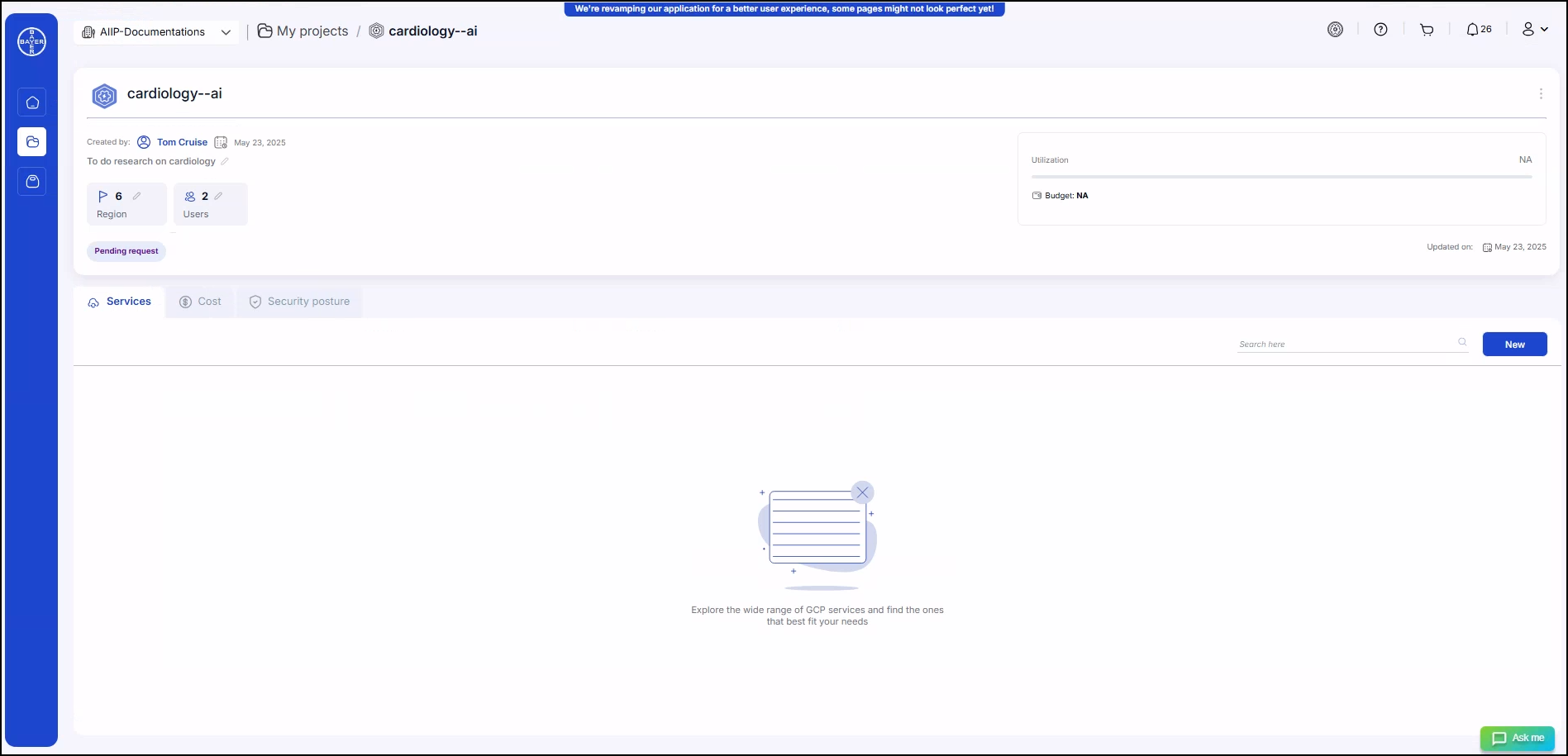

Project detailed view

Here, below details are displayed:

  1. Project Details: Lists all available Google Cloud Platform (GCP) services, Project name, Description etc. Users can select the required services, configure them, and submit the request to provision these services within their project. The project name consists of the link of the project on GCP console. On clicking on this, the user will be redirected to the GCP console page of this project. (refer to Provisioning GCP Services via Service Catalogue section for more details).
  2. Users: Displays the list of users associated with the project.
  3. Regions: Shows the geographical GCP regions associated with the project.
  4. Budget: Provides budget-related insights and allocations for the project.
  5. Backup and Archive(Planned for Future Releases): This section will offer backup and archival functionalities to ensure data retention and recovery.
  6. Cost (Planned for Future Releases): Will include detailed cost tracking, usage insights, and optimization recommendations.
  7. Security Posture(Planned for Future Releases): Will introduce security-related features to enhance project compliance and protection.

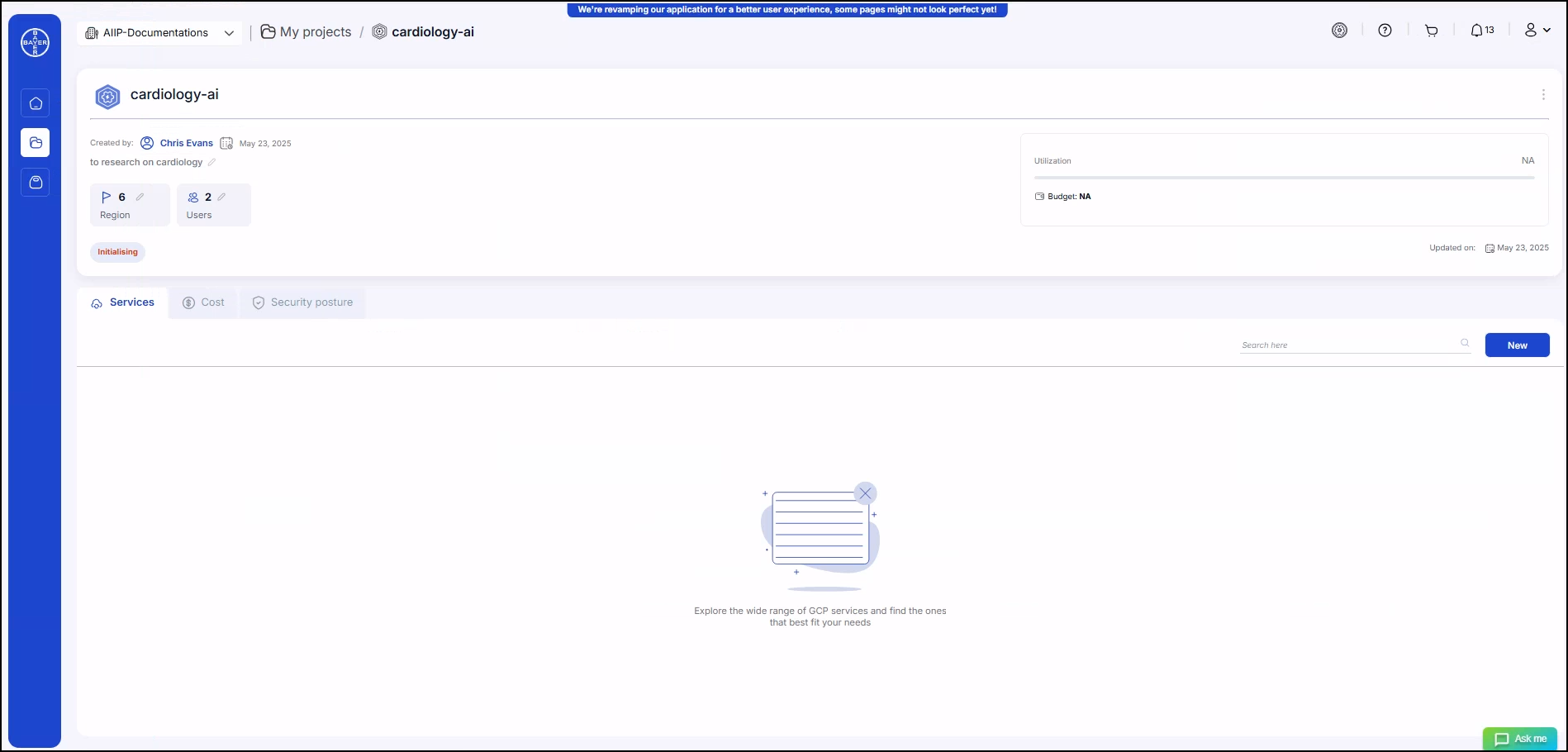

Once the project is approved by the admin, it enters the Provisioning state, indicating that the project is in the process of being created. During this time, it will be labeled with an "Initialising" tag. The provisioning typically takes "25–30 minutes", and the project will remain in the Initialising state until the setup is complete. Project details

Once the project is successfully created, it will be displayed with a tag "Active". Project details

Let us now talk about the different ways of accessing your GCP projects that are provisioned through the AI Innovation Platform, where one of them is the hyperlink present on the project name that will redirect you to the GCP console page of that project.

Access GCP Project Using Google Cloud SDK

Pre-requisites

  1. Install Google Cloud SDK: If the SDK is not installed, download and install it from Google Cloud SDK Installation Guide ⧉.
  2. Verify GCloud SDK Installation: Open Terminal (Mac/Linux) or Command Prompt (Windows).

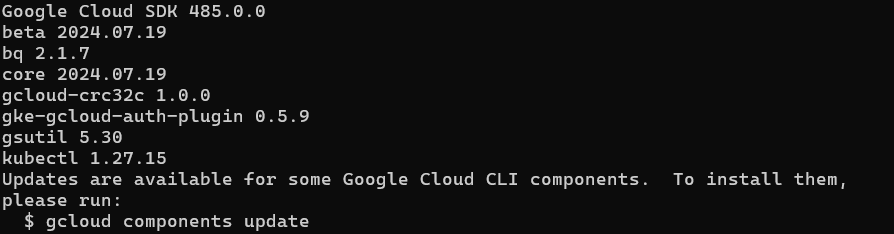

  3. Verify the Gcloud SDK version. Minimum Version: 485.0.0 or later:

    gcloud --version or gcloud version

    If the version is older, update it using:

    gcloud components update

Steps to access the GCP project

  1. Create the login.json as mentioned below

    {
  "universe_domain": "googleapis.com",
  "type": "external_account_authorized_user_login_config",
  "audience": "//iam.googleapis.com/locations/global/workforcePools/aiip-identity-management-prod/providers/aiip-provider-prod",
  "auth_url": "https://auth.cloud.google/authorize",
  "token_url": "https://sts.googleapis.com/v1/oauthtoken",
  "token_info_url": "https://sts.googleapis.com/v1/introspect"
}

    Note: This configuration file is required for logging into SDK using your identity provider. The user session will be valid for around "8 hrs" by default

  2. Run the following command

    gcloud auth login --no-launch-browser --login-config=login.json

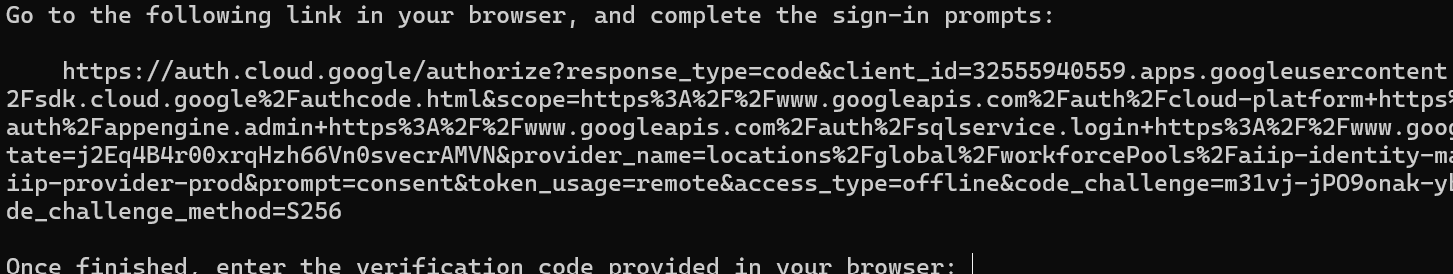

    Open the sigin link prompted and login with user access. Ensure you open the link in same browser where UI interface is authenticated.

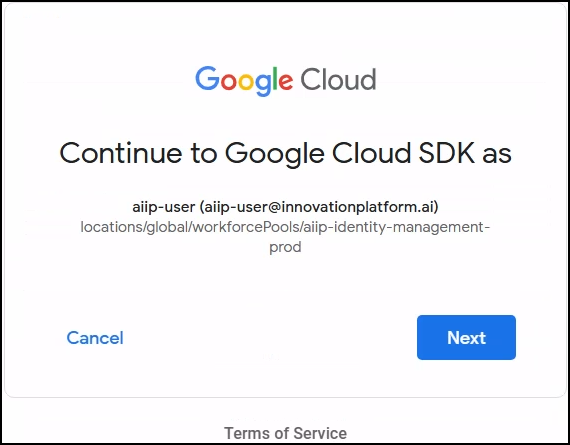

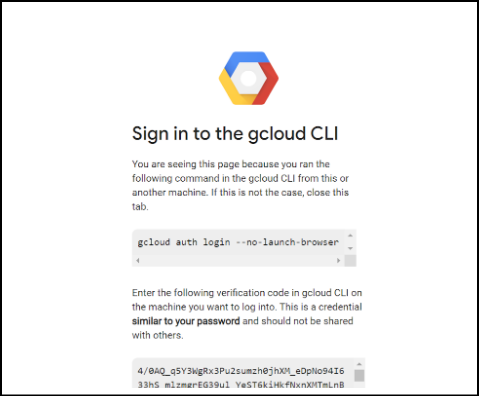

  3. Open the above authorization link in the device Browser. Login via Google Provider.

    The above link will open the Federated login and give an authorization token which the user needs to enter here.

  4. Paste the token and verify the credentials The account will be in the below naming convention:

    principal://iam.googleapis.com/locations/global/workforcePools/\<WorkforcePool Name\> /subject/\<User Email\>

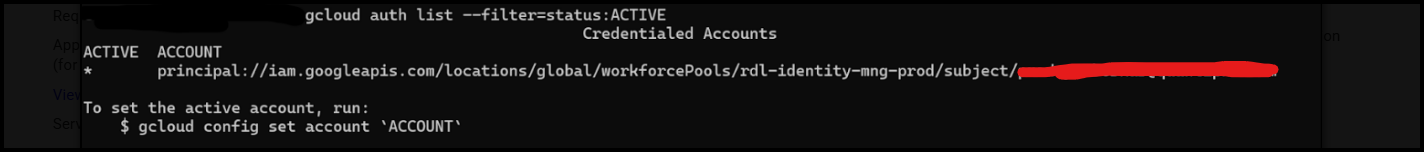

    Run below command to verify the active user.

    gcloud auth list –filter=status:ACTIVE

  5. Configure Gcloud SDK Run the below commands to setup your cloud SDK

    gcloud config set project PROJECT_ID
gcloud config set compute/region REGION
gcloud config set compute/zone ZONE

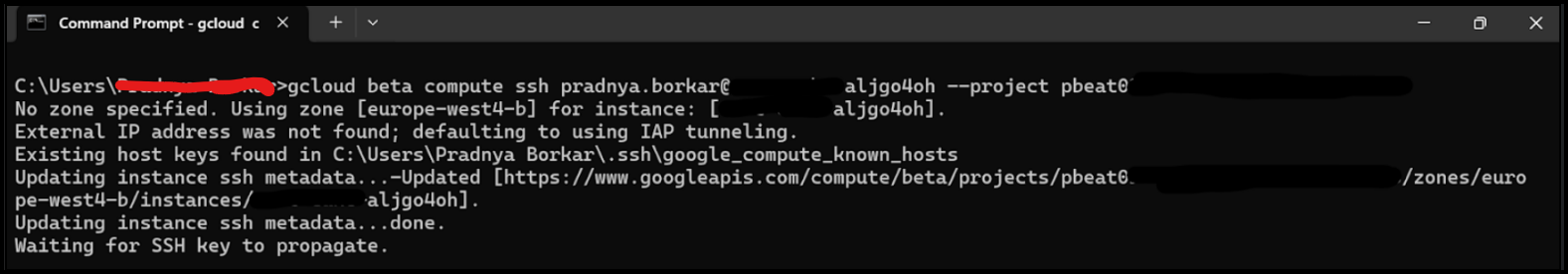

  6. SSH into compute VM. Run the below SSH command to SSH into the instance:

    gcloud beta compute ssh \<USERNAME\>@\<INSTANCE_NAME\> \--project \<PROJECT_ID\>


Note:

  • For JupyterHub service, username is calculated by replacing all special character by "_": E.g If email is “firstname.lastname@domain.com” then the username is "firstname_lastname_domain_com"
  • For compute instances, username is calculated using email.split['@'][0]: E.g If email is “firstname.lastname@domain.com” then the username is "firstname.lastname"
  • Username in ssh command follows all rules defined by GCP

Data Security Guidelines:

  • "Do not store your data outside of the project resources created." This includes sharing them online, on personal devices, or through any other means.
  • By using this platform, you agree to be responsible for the security of your data and to comply with these guidelines.
    If you have any questions or concerns about data security, please contact our support team.

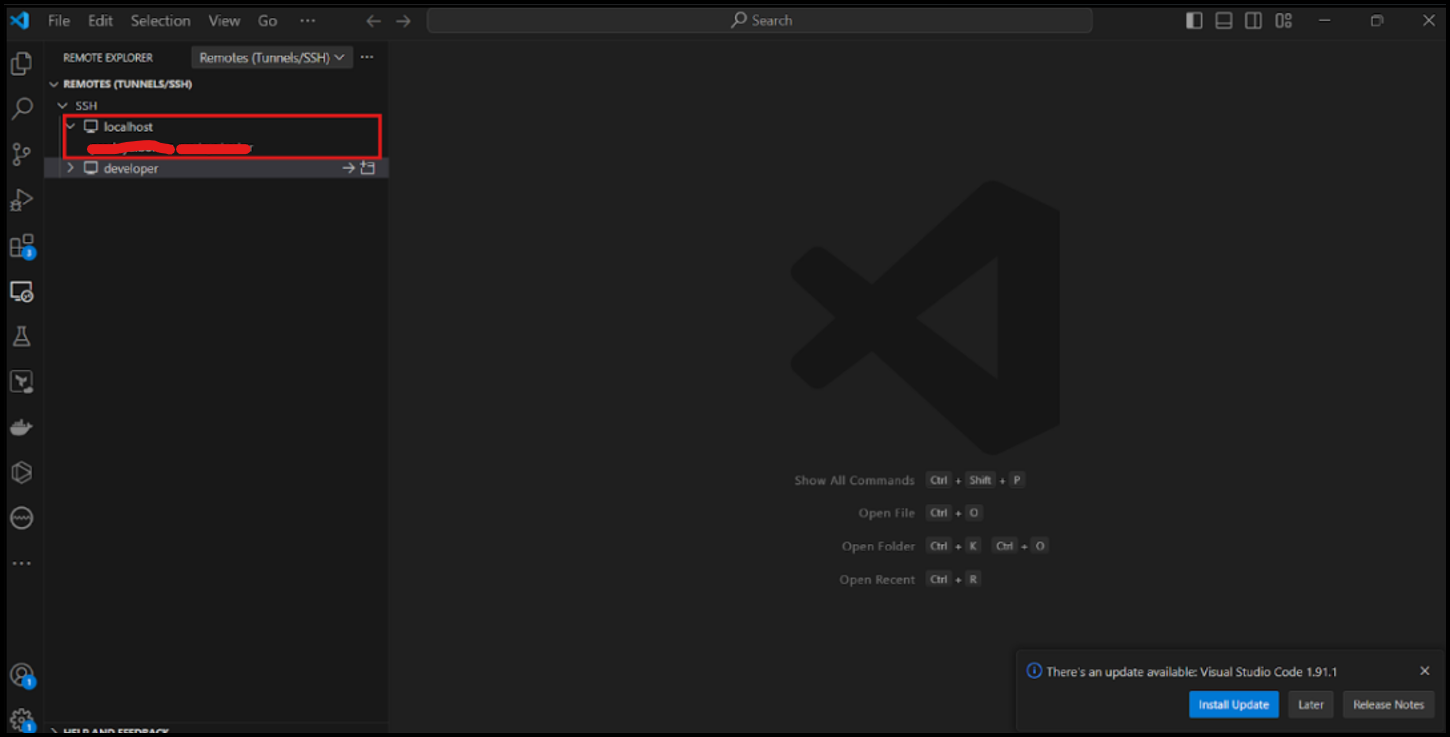

1. Connect via VS code

Below steps can be followed:

  1. Ensure VS code IDE is installed on your device to proceed with this setup.

  2. SSH into the instance using gcloud command for allowing the GCP APIs to auto generate the SSH Keys which will be used as Identity file to connect from VS code.

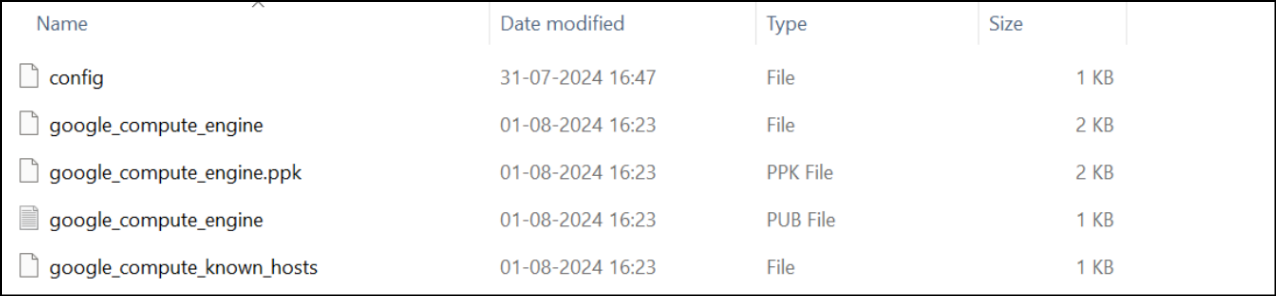

    Below are the files auto-generated by the above command in \~/.ssh/config/


  3. Start IAP tunnel for the instance to be connected to VS code IDE.


  4. Install Remote SSH VS code plugin


  5. Update the SSH configurations in \~/.ssh/config file and add the below.

    Host localhost
  HostName localhost
  Port 8080
  User <ADD_USER_NAME_HERE>
  IdentityFile ~/.ssh/google_compute_engine

Data Security Guidelines: - "Do not store your data outside of the project resources created." This includes sharing them online, on personal devices, or through any other means. - By using this platform, you agree to be responsible for the security of your data and to comply with these guidelines.
If you have any questions or concerns about data security, please contact our support team.

2. Browser Based SSH

GCP offers browser based SSH functionality. To know more on how you can use this, you can visit the official documentation ⧉.

3. Use Cloud Workstations

Cloud workstations are used as an alternative to cloud shell. It provides a browser based IDE for the developers.

The Cloud workstation consists of 3 stages:

  1. Clusters: Create Cluster ⧉
  2. Configuration: Create Configuration ⧉
  3. Workstations: Create Workstations ⧉

This service is available in the service catalogue of our platform. Read here to know more.

4. Desktop Access

a. Remote Desktop Connection (Windows Users)

To access the GCP projects through remote desktop, this section can be referred to. With this, you will understand how to connect to Windows instances on GCP cloud. Since you are working with the secure environment, the instances would not be associated with external/public IPs, hence you need to open a secure tunnel using IAP proxy offered by GCP to securely access the instances.

Below steps can be followed:

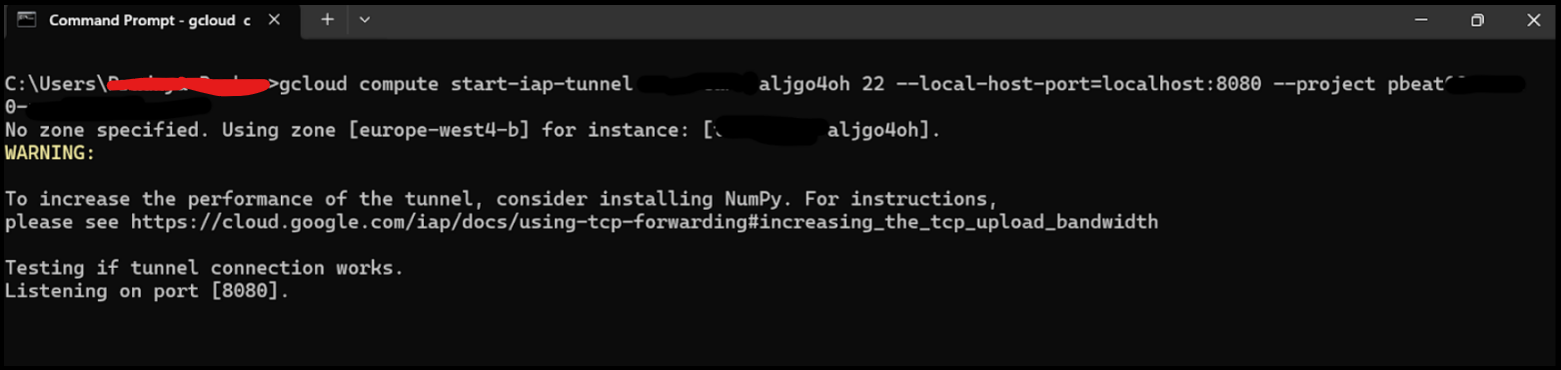

  1. Start IAP Tunnel
    gcloud compute start-iap-tunnel <INSTANCE_NAME> <INSTANCE_PORT> --local-host-port=localhost:<LOCAL_PORT> --project <PROJECT_NAME>

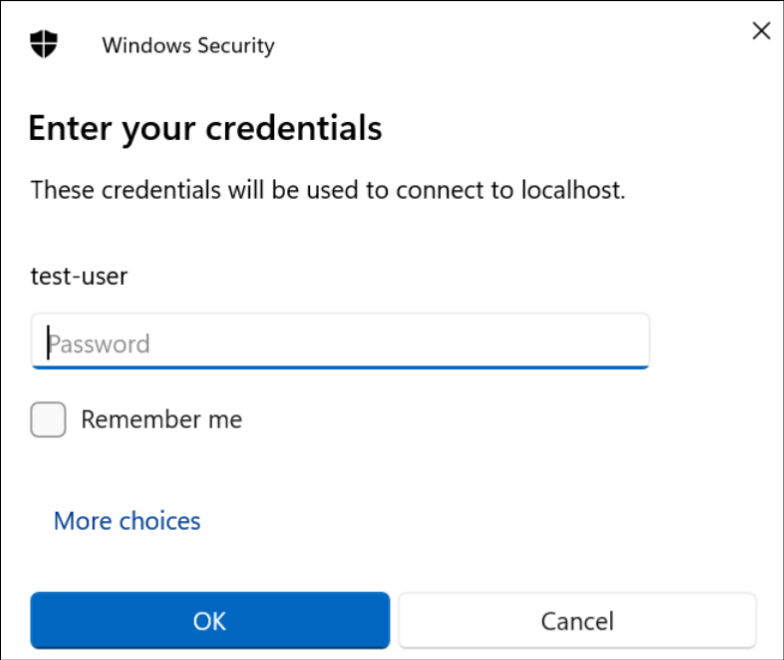

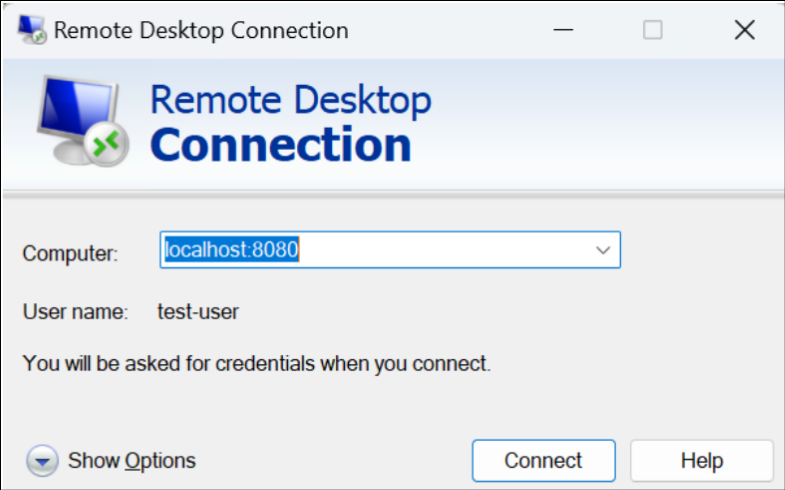

  2. Login using user credentials from the Remote Desktop

The Windows Desktop will open post successful login.

b. IAP Desktop (Windows Users)

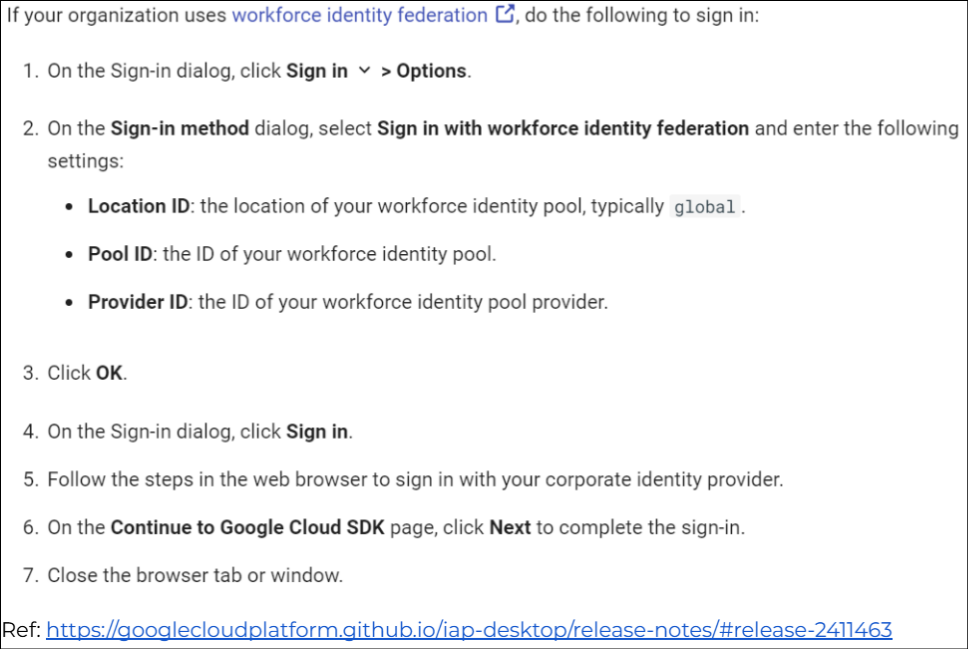

IAP desktop is a remote desktop and SSH client that lets you connect to your Google Cloud VM instances from anywhere. You need to make sure to download version 2.41 or later versions for using workforce Identity providers from here ⧉ and then follow the following steps

Ref: IAP Release Documentation ⧉

Data Security Guidelines: - "Do not store your data outside of the project resources created." This includes sharing them online, on personal devices, or through any other means. - By using this platform, you agree to be responsible for the security of your data and to comply with these guidelines.
If you have any questions or concerns about data security, please contact our support team.

c. Windows App (Mac Users)

  1. Install Windows App on Mac

  2. Connect to the Windows VM

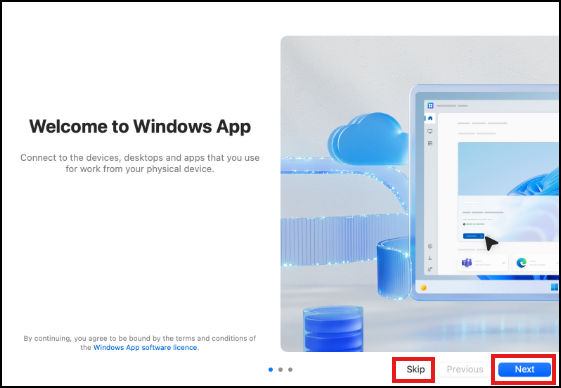

    • If it's your first time using Windows App, navigate through the tour to learn more about Windows App, then select Done, or select Skip.
      Mac 1

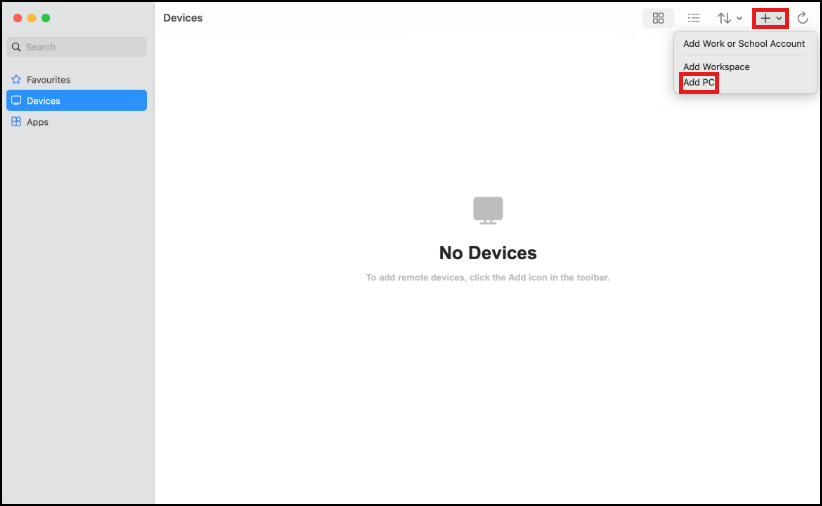

    • Windows App opens on the Devices tab. Select the plus (+) icon, then select Add PC.
      Mac 2

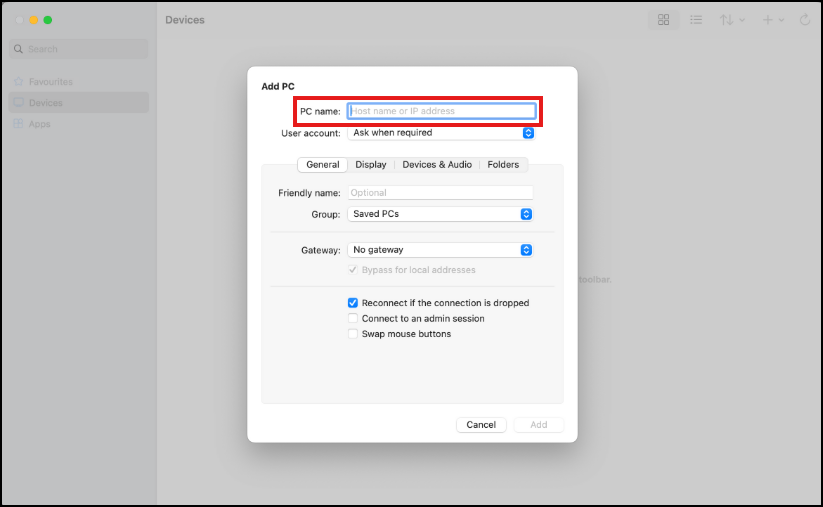

    • In the dialog box that appears, for PC Name, enter the hostname as localhost.
      Mac 3
    • Navigate to the "User account" and select "Add User Account".

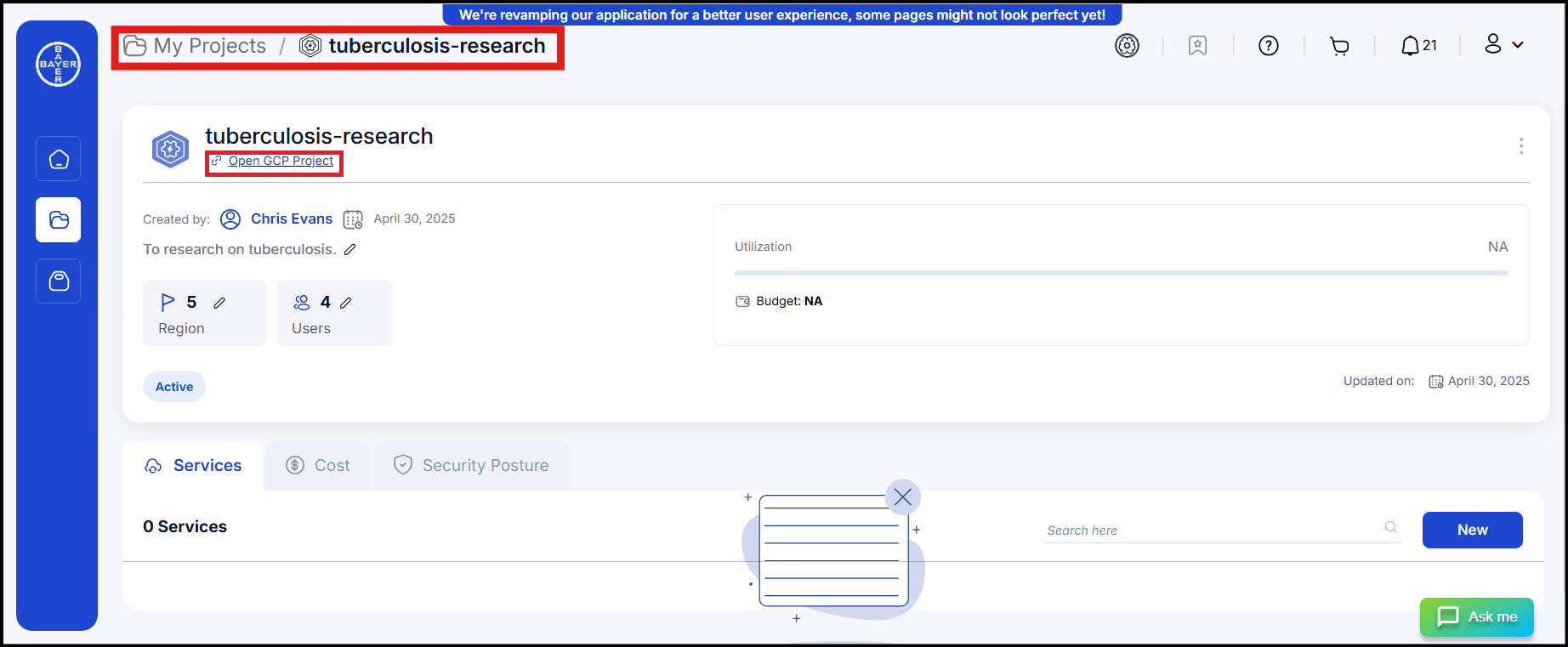

      • Go to "My Projects", choose your project, and click on the "GCP Link".
        UI 1

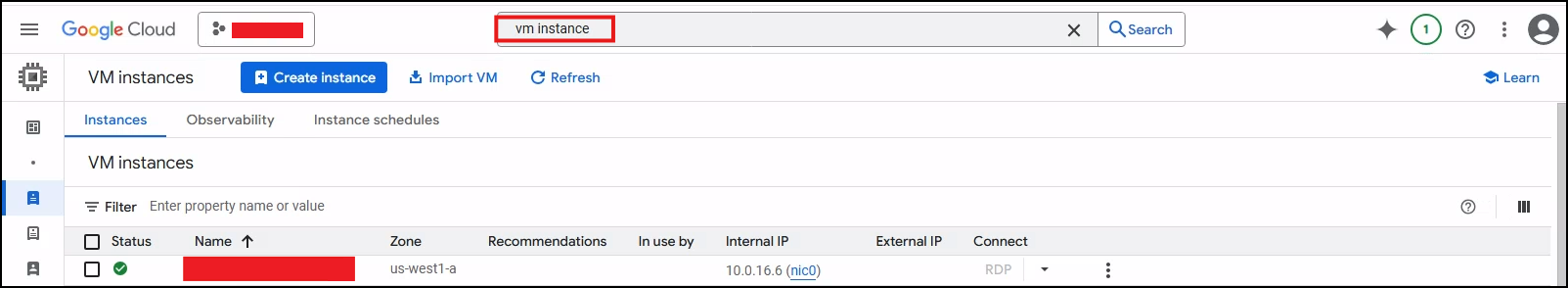

      • In the search bar, type "VM Instance" to locate the Slicer VM.
        gcp 1

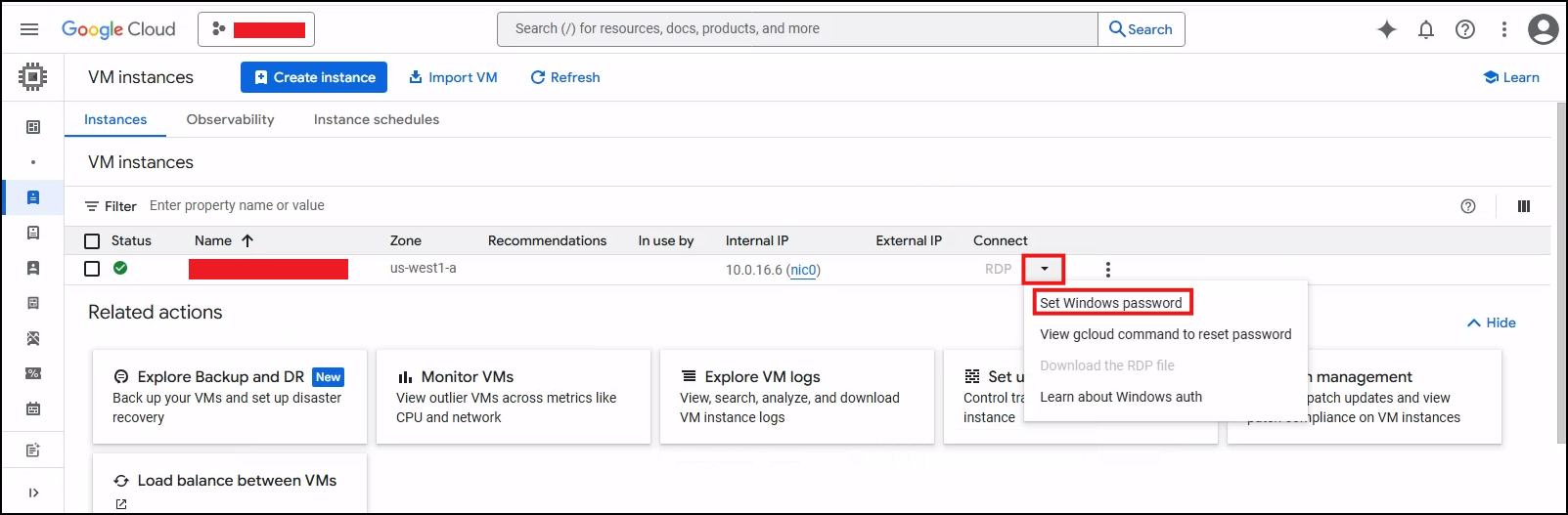

      • Click the dropdown icon under "Connect" and select "Set Windows Password".
        gcp 2

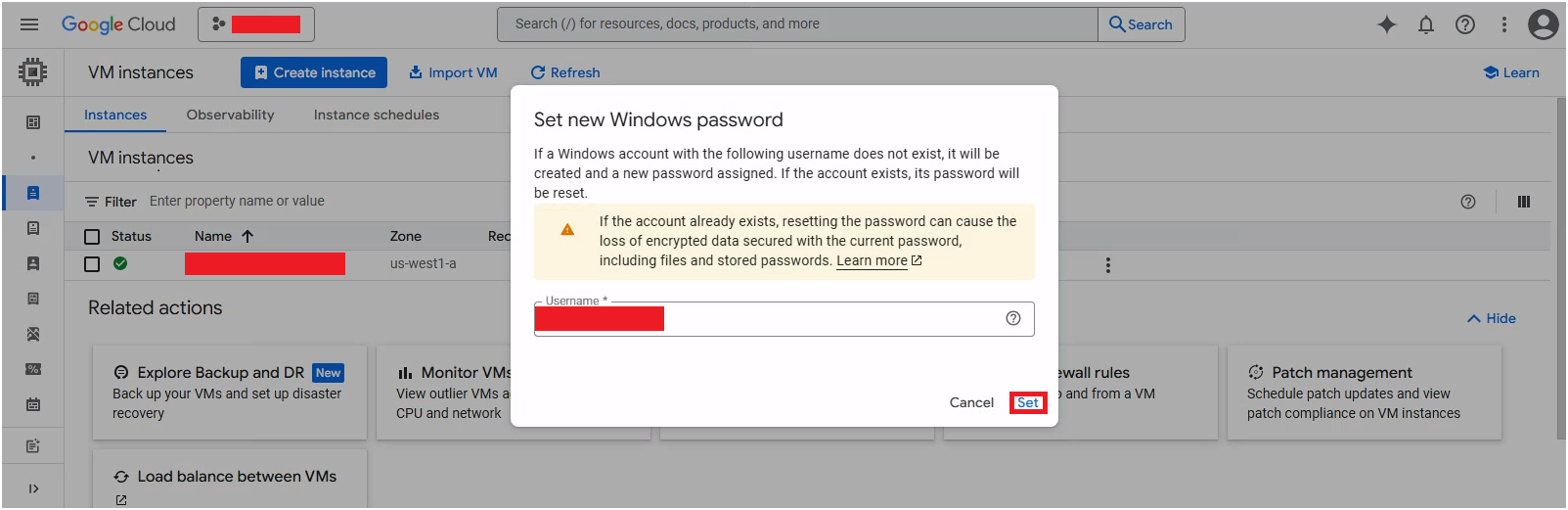

      • Enter or update the "Username", then click "Set".
        gcp 3

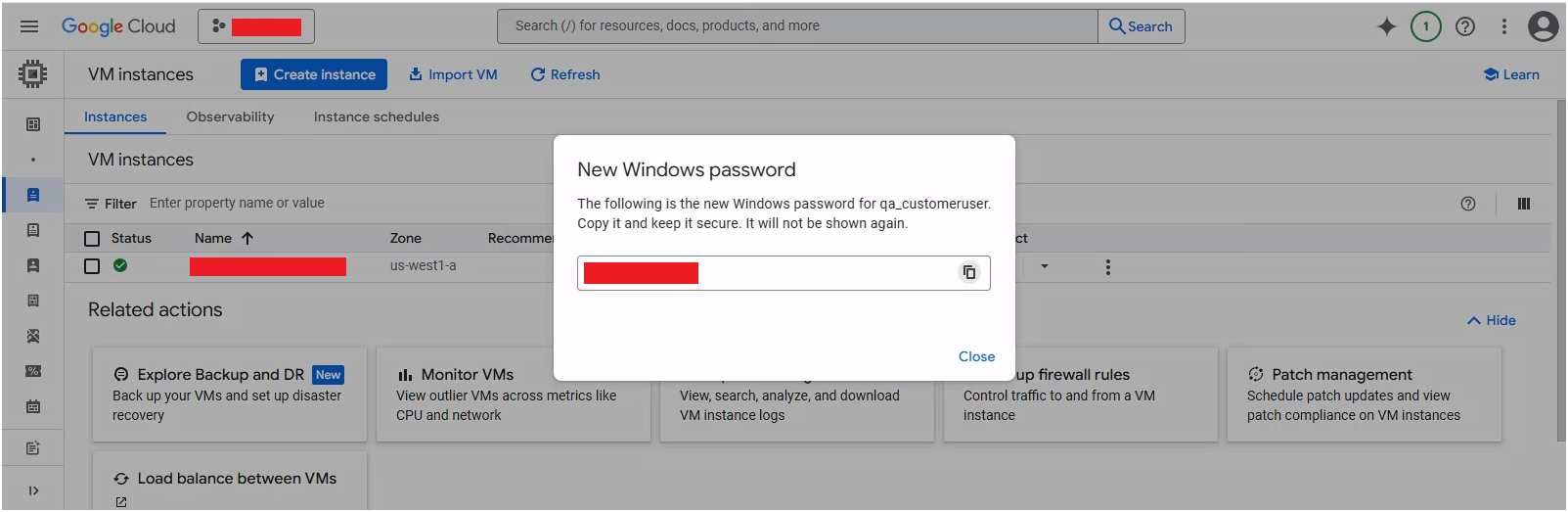

      • A "Windows password" will be generated - copy and store it securely.
        gcp 4
    • Click "Add"

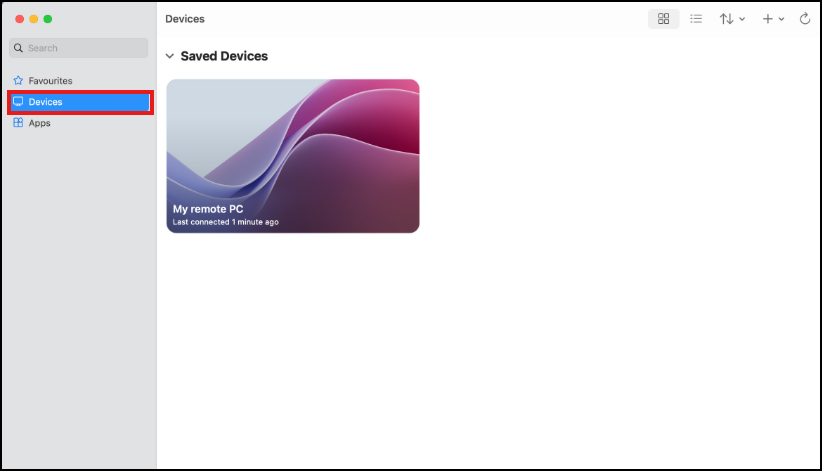

    • Your remote PC is added to the Devices tab.
      Mac 4
    • On the Devices tab, double-click the remote PC to connect.

  3. Accept Certificate Warning & Login

    • If you see a certificate warning, click "Continue".

    • You should now have access to your "Windows VM."

5. Common Errors

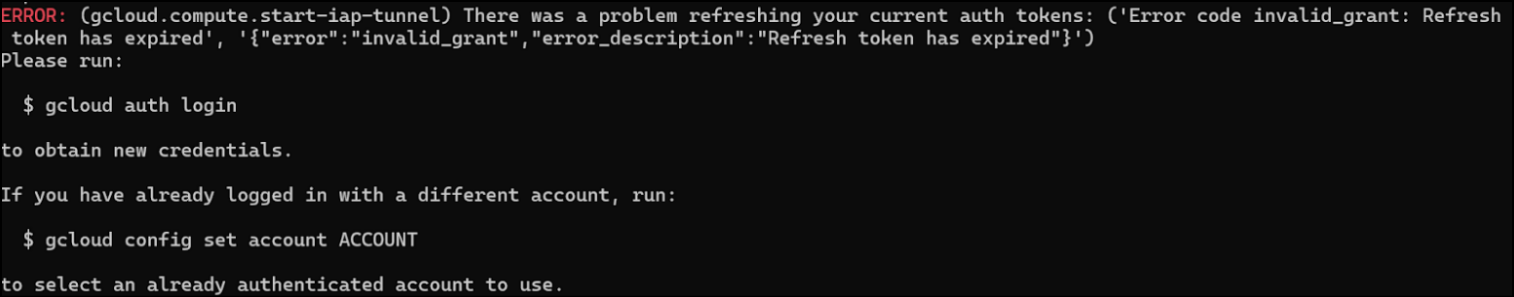

Refresh token has expired:

In this scenario, the user tokens have expired and users are required to login to cloud SDK again. As per security best practices, the "tokens" generated for the users are expired in a defined time interval.


Public key denied while connecting to VS code:

In case the user experiences public key denied from VS Code IDE but is able to SSH into the instance using the Gcloud command, you need to remove old keys from .ssh folder generated and perform a fresh SSH into the instance to generate new keys and try connecting again.
